Micrometers

Showing 1–24 of 456 resultsSorted by latest

•

  INDICATING MICROMETER, 3-4″

  Part #: 3332-4
  • Micrometer head graduation .0001".
  • Micrometer head accuracy .00020".
  • Micrometer head accuracy .00020".
  • Carbide measuring faces.
  • Optional accessory: gage blocks grade 0(4112-A series), for zero setting
  $1,158.90
  Add to cart INSIZE
•

  INDICATING MICROMETER, 2-3″

  Part #: 3332-3
  • Micrometer head graduation .0001".
  • Micrometer head accuracy .00020".
  • Micrometer head accuracy .00020".
  • Carbide measuring faces.
  • Optional accessory: gage blocks grade 0(4112-A series), for zero setting
  $1,016.12
  Add to cart INSIZE
•

  LASER SCAN MICROMETER, 0.5-65mm

  Part #: LDM-065 $24,633.46
  Add to cart INSIZE
•

  LASER SCAN MICROMETER, 0.1-30mm

  Part #: LDM-030 $22,203.54
  Add to cart INSIZE
•

  LASER SCAN MICROMETER, 0.5-90mm, 1μm

  Part #: LDM-D090 $26,227.08
  Add to cart INSIZE
•

  MULTI CHANNEL WIRELESS SYSTEM, TRANSMITTER (for digital micrometers, except 3631, 3632, 3108, 3109 and 3635)

  Part #: 7306-30A
  • One receiver can be connected to 10 transmitters. DISPLAY: data can be input to Excel as keyboard signal. Single collection: press the read button once to collect the reading from measuring tool once. Multi collection: press the read button once to start collecting readings from measuring tools continuously, press the button again to stop collecting. Total collection times and interval time can be adjusted.
  • 0 0
  $1,587.02
  Add to cart INSIZE
•

  DIGITAL BLADE MICROMETER (6.5×0.75mm), 0-25mm/0-1″

  Part #: 3532-25A
  • Resolution 0.001mm/.00005" Measure the groove diameter of shafts and keyways.
  • Non-rotating spindle.
  • Button function: on/off, set, mm/inch, ABS/INC Data output. LR44 battery, automatic power off
  $662.08
  Add to cart INSIZE
•

  NON ROTATING SPINDLE MICROMETER HEAD, 0-25mm

  Part #: 6377-25W
  • Graduation 0.01mm Meet DIN863-2 Ratchet stop Non-rotating spindle
  $149.55
  Add to cart INSIZE
•

  OUTSIDE MICROMETER, 0-1″, graduation .0001″

  Part #: 3202-1
  • Carbide measuring faces.
  • Meet DIN863-1 Supplied with setting standards (except 0-25mm).
  $99.98
  Add to cart INSIZE
•

  HIGH PRECISION NON-ROTATING SPINDLE ELECTRONIC MICROMETERS50-80mm/1.97-3.15″

  Part #: 3661-80
  • Resolution 0.01mm/.0005", 0.001mm/0.00005", 0.0005mm/.00002".
  • Repeatability 0.5um. Measuring force 5-10N.
  • Flatness of measuring faces 0.3um. Parallelism of measuring faces 0.5um.
  • Ratchet stop Non-rotating spindle, suitable for cylinders.
  • Quick measurement: one turn of sleeve or ratchet stop makes 2mm spindle feed.
  • Carbide measuring faces
  $2,782.56
  Add to cart INSIZE
•

  HIGH PRECISION NON-ROTATING SPINDLE ELECTRONIC MICROMETERS,25-55mm/.98-2.17″

  Part #: 3661-55
  • Resolution 0.01mm/.0005", 0.001mm/0.00005", 0.0005mm/.00002".
  • Repeatability 0.5um. Measuring force 5-10N.
  • Flatness of measuring faces 0.3um. Parallelism of measuring faces 0.5um.
  • Ratchet stop Non-rotating spindle, suitable for cylinders.
  • Quick measurement: one turn of sleeve or ratchet stop makes 2mm spindle feed.
  • Carbide measuring faces
  $2,608.24
  Add to cart INSIZE
•

  HIGH PRECISION NON-ROTATING SPINDLE ELECTRONIC MICROMETERS, 0-30mm/0-1.18″

  Part #: 3661-30
  • Resolution 0.01mm/.0005", 0.001mm/0.00005", 0.0005mm/.00002".
  • Repeatability 0.5um. Measuring force 5-10N.
  • Flatness of measuring faces 0.3um. Parallelism of measuring faces 0.5um.
  • Ratchet stop Non-rotating spindle, suitable for cylinders.
  • Quick measurement: one turn of sleeve or ratchet stop makes 2mm spindle feed.
  • Carbide measuring faces
  $2,293.79
  Add to cart INSIZE
•

  HIGH PRECISION NON-ROTATING SPINDLE ELECTRONIC MICROMETERS,125-155mm/4.92-6.1″

  Part #: 3661-155
  • Resolution 0.01mm/.0005", 0.001mm/0.00005", 0.0005mm/.00002".
  • Repeatability 0.5um. Measuring force 5-10N.
  • Flatness of measuring faces 0.3um. Parallelism of measuring faces 0.5um.
  • Ratchet stop Non-rotating spindle, suitable for cylinders.
  • Quick measurement: one turn of sleeve or ratchet stop makes 2mm spindle feed.
  • Carbide measuring faces
  $3,645.28
  Add to cart INSIZE
•

  HIGH PRECISION NON-ROTATING SPINDLE ELECTRONIC MICROMETERS,100-130mm/3.94-5.12″

  Part #: 3661-130
  • Resolution 0.01mm/.0005", 0.001mm/0.00005", 0.0005mm/.00002".
  • Repeatability 0.5um. Measuring force 5-10N.
  • Flatness of measuring faces 0.3um. Parallelism of measuring faces 0.5um.
  • Ratchet stop Non-rotating spindle, suitable for cylinders.
  • Quick measurement: one turn of sleeve or ratchet stop makes 2mm spindle feed.
  • Carbide measuring faces
  $3,390.30
  Add to cart INSIZE
•

  HIGH PRECISION NON-ROTATING SPINDLE ELECTRONIC MICROMETERS,75-105mm/2.95-4.13″

  Part #: 3661-105
  • Resolution 0.01mm/.0005", 0.001mm/0.00005", 0.0005mm/.00002".
  • Repeatability 0.5um. Measuring force 5-10N.
  • Flatness of measuring faces 0.3um. Parallelism of measuring faces 0.5um.
  • Ratchet stop Non-rotating spindle, suitable for cylinders.
  • Quick measurement: one turn of sleeve or ratchet stop makes 2mm spindle feed.
  • Carbide measuring faces
  $3,143.81
  Add to cart INSIZE
•

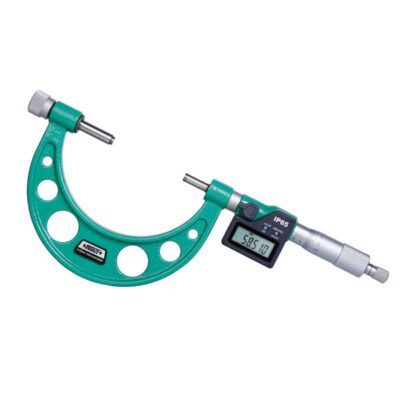

  DIGITAL OUTSIDE MICROMETER WITH INTERCHANGEABLE ANVILS, 0-100mm/0-4″

  Part #: 3506-100A
  • Resolution 0.001mm/0.0001" (resolution of 3506-100A and 3506-150A is 0.001mm/0.00005").
  • IP65 dust/waterproof.
  • Button function: on/off, set, mm/inch, ABS/INC, data output.
  • LR44 battery, automatic power off. Ratchet stop.
  • Carbide measuring faces.
  • Supplied with setting standards.
  • Optional accessory: data output cable (code 7315-30, 7302-30).
  $723.47
  Add to cart INSIZE
•

  SCREW THREAD MICROMETER, 50-75mm, Graduation 0.01mm

  Part #: 3281-75A
  • Measure pitch diameter of screw threads.
  • Non-rotating spindle. Ratchet stop.
  • Supplied with 60° setting standards (except 0-25mm).
  • Optional accessary: 55° setting standards
  $318.02
  Add to cart INSIZE
•

  SCREW THREAD MICROMETER, 0-25mm, Graduation 0.01mm

  Part #: 3281-25A
  • Measure pitch diameter of screw threads.
  • Non-rotating spindle. Ratchet stop.
  • Supplied with 60° setting standards (except 0-25mm).
  • Optional accessary: 55° setting standards
  $247.21
  Add to cart INSIZE
•

  BLADE MICROMETER (6.5×0.75mm), 50-75mm, graduation 0.01mm

  Part #: 3232-75A
  • Meet DIN863-3 Measure the groove diameter of shafts and keyways.
  • Non-rotating spindle. Ratchet stop.
  • Supplied with setting standards (except 0-25mm).
  $418.08
  Add to cart INSIZE
•

  TUBULAR INSIDE MICROMETER, 50-200mm, graduation 0.01mm

  Part #: 3221-200
  • Accuracy: (6+L/50)μm. L=maximum measuring length (mm).
  • L=maximum measuring length (mm).
  • Optional accessary: setting ring (code 6312), gage block accessory (code 6881), cylinder gage block (code 4001), cliper/height gage checker (code 6884)
  $398.24
  Add to cart INSIZE
•

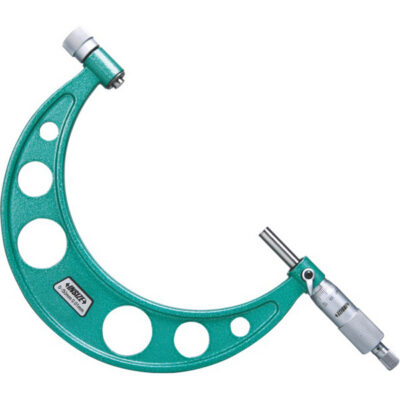

  OUTSIDE MICROMETER WITH INTERCHANGEABLE ANVILS, 100-200mm, graduation 0.01mm

  Part #: 3206-200A
  • Ratchet stop Meet DIN863-3 Carbide measuring faces.
  • Supplied with setting standards
  $569.83
  Add to cart INSIZE
•

  ELECTRONIC THREE POINTS INTERNAL MICROMETER, 3-4mm/0.12-0.16″

  Part #: 3127-4
  • Resolution 0.001mm/.00005" IP65 dust/waterproof Buttons: on/off, set, mm/inch, ABS/INC. Data output.
  • LR44 battery, automatic power off Ratchet stop Optional accessary: data output cable (code 7315-30, 7302-30), setting ring (code 6312), micrometer stand and clamp (code 6301 and 6301-2)
  $1,164.31
  Add to cart INSIZE
•

  ELECTRONIC OUTSIDE MICROMETER (BASIC TYPE, WITHOUT DATA OUTPUT), 50-75mm/ 2-3″, resolution 0.001mm/.00005″

  Part #: 3109-75A
  • Button function: on/off, set, mm/inch, ABS/INC No data output LR44 battery, automatic power off. Carbide measuring faces.
  • Friction thimble Supplied with spherical anvil.
  • Setting standards are included (except 0-25mm/0-1").
  $230.46
  Add to cart INSIZE
•

  ELECTRONIC OUTSIDE MICROMETER SET (WITHOUT DATA OUTPUT), 50-75mm, resolution 0.001mm/.00005″

  Part #: 3108-75A
  • IP65 dust/waterproof Button function: on/off, set, mm/inch, ABS/INC No data output LR44 battery, automatic power off Carbide measuring faces.
  • Supplied with spherical anvil.
  • Setting standards are included (except 0-25mm/0-1").
  $291.73
  Add to cart INSIZE
