Height Gages

Showing 1–24 of 47 resultsSorted by latest

•

  VERNIER HEIGHT GAGE, 0-80″/0-2000mm

  Part #: 1251-2000E
  • Graduation .001"/0.02mm Accuracy: ±.0055" Carbide tipped scriber Made of stainless steel (except the base) Satin chrome plated scale With dial test indicator holder Supplied with dust cover
  $5,350.52
  Add to cart INSIZE
•

  VERNIER HEIGHT GAGE, 0-60″/0-1500mm

  Part #: 1251-1500E
  • Graduation .001"/0.02mm Accuracy: ±.0043" Carbide tipped scriber Made of stainless steel (except the base) Satin chrome plated scale With dial test indicator holder Supplied with dust cover
  $2,823.83
  Add to cart INSIZE
•

  DIGITAL HEIGHT GAGE, 0-60″/0-1500mm

  Part #: 1150-1500E
  • Resolution: .0005"/0.01mm.
  • Buttons: on/off, zero, inch/mm, ABS/INC, data hold, TOL, set.
  • ABS/INC is for absolute and incremental measurement.
  • TOL is for tolerance measurement.
  • Carbide tipped scriber.
  • Made of stainless steel (except the base).
  • LR44 battery. Data output.
  • Supplied with dial test indicator holder. Supplied with dust cover. Optional accessory: data output cable (part no. 7302-SPC7, keyboard format).
  $4,793.32
  Add to cart INSIZE
•

  Height gage adapter

  Part #: ISR-C300-LB1
  • Height gage adapter 0 0
  $128.21
  Add to cart INSIZE
•

  CONCENTRICITY GAGE, Diameter range .315 -3.150″, Center height (h) 5.118″

  Part #: 4725-80E
  • With ball bearing, high stability, long working life Accuracy 2um Optional accessory: dial test indicator
  $9,832.65
  Add to cart INSIZE
•

  CONCENTRICITY GAGE, Diameter range .197 -2.362″, Center height (h) 3.543″

  Part #: 4725-60E
  • With ball bearing, high stability, long working life Accuracy 2um Optional accessory: dial test indicator
  $7,935.38
  Add to cart INSIZE
•

  CONCENTRICITY GAGE, Diameter range .118 -1.772″, Center height 3.150″

  Part #: 4725-45E
  • With ball bearing, high stability, long working life Accuracy 2um Optional accessory: dial test indicator
  $3,125.07
  Add to cart INSIZE
•

  SCRIBER FOR HEIGHT GAGE 1156-1000

  Part #: 7150-SC10
  • Carbide tipped.
  • Fits 1156-1000 Carbide Tipped Scriber for height gages
  $144.02
  Add to cart INSIZE
•

  DIGITAL ZERO SETTER, height 2″

  Part #: 6557-50E
  • Resolution .00005"/0.001mm IP65 dust/waterproof.
  • Buttons: on/off, mm/inch, zero CR2032 battery Automatic power off Magnetic base Automatic backlight at zero
  $219.20
  Add to cart INSIZE
•

  DIGITAL CHAMFER HEIGHT GAGE, .008-.197″/0.2-5mm

  Part #: 2944-1
  • Resolution: .0005"/0.01mm Measure outside or inside chamfer height.
  • Suitable for diameter of bores ≥ .236", chamfer angle α ≥ 30°.
  • Setting gage is included
  $3,323.98
  Add to cart INSIZE
•

  INTERNAL THREAD HEIGHT MEASURING INSTRUMENT, 0-1/4″

  Part #: 2233-35E
  • Dial indicator graduation .0005" Accuracy .0008" Measure the height of internal thread thread with nominal diameter less than 5 1/2"(139.7mm) Optional accessory: thread height standard blocks
  $2,493.15
  Add to cart INSIZE
•

  INTERNAL THREAD HEIGHT MEASURING INSTRUMENT, 0-3.5mm

  Part #: 2233-35
  • Dial indicator graduation 0.01mm Accuracy 0.02mm Measure the height of internal thread thread with nominal diameter less than 5 1/2"(139.7mm) Optional accessory: thread height standard blocks
  $2,570.93
  Add to cart INSIZE
•

  THREAD HEIGHT MEASURING INSTRUMENT, 0-1/4″

  Part #: 2232-35E
  • Dial indicator graduation .0005" Accuracy .0008" Measure the height of exernal thread and internal thread with nominal diameter larger than 5 1/2"(139.7mm) Optional accessory: thread height standard blocks
  $1,941.52
  Add to cart INSIZE
•

  THREAD HEIGHT MEASURING INSTRUMENT, 0-3.5mm

  Part #: 2232-35
  • Dial indicator graduation 0.01mm Accuracy 0.02mm Measure the height of exernal thread and internal thread with nominal diameter larger than 5 1/2"(139.7mm) Optional accessory: thread height standard blocks
  $2,001.38
  Add to cart INSIZE
•

  VERNIER HEIGHT GAGE, 0-40″/0-1000mm

  Part #: 1251-1000E
  • Graduation .001"/0.02mm Accuracy: ±.0028" Carbide tipped scriber Made of stainless steel (except the base) Satin chrome plated scale With dial test indicator holder Supplied with dust cover
  $1,556.62
  Add to cart INSIZE
•

  VERNIER HEIGHT GAGE, 0-20″/0-500mm

  Part #: 1251-500E
  • Graduation .001"/0.02mm Accuracy: ±.0020" Carbide tipped scriber Made of stainless steel (except the base) Satin chrome plated scale With dial test indicator holder Supplied with dust cover
  $572.40
  Add to cart INSIZE
•

  VERNIER HEIGHT GAGE, 0-12″/0-300mm

  Part #: 1251-300E
  • Graduation .001"/0.02mm Accuracy: ±.0016" Carbide tipped scriber Made of stainless steel (except the base) Satin chrome plated scale With dial test indicator holder Supplied with dust cover
  $427.30
  Add to cart INSIZE
•

  VERNIER HEIGHT GAGE, 0-8″/0-200mm

  Part #: 1251-200E
  • Graduation .001"/0.02mm Accuracy: ±.0012" Carbide tipped scriber Made of stainless steel (except the base) Satin chrome plated scale With dial test indicator holder Supplied with dust cover
  $347.39
  Add to cart INSIZE
•

  LARGE RANGE DIGITALAL HEIGHT GAGE, 0~4″

  Part #: 1158-100
  • Resolution .000005"/0.1um (can switch to .00005"/1um) Accuracy (68℉）118uin High stability, high precision, high response speed(200"/s) High brightness LED display Granite base flatness 118uin
  $11,747.02
  Add to cart INSIZE
•

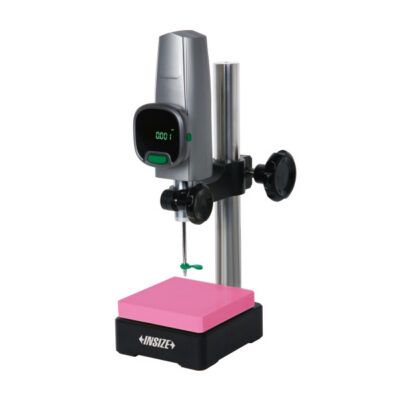

  DIGITAL HEIGHT GAGES, 0-2″, ceramic base

  Part #: 1157-502
  • Resolution .00005"/1um Accuracy (68℉）118uin Buttons: on/off, zero, mm/inch, mix/min/mix-min High response speed (200"/s) High brightness LED display
  $4,472.41
  Add to cart INSIZE
•

  DIGITAL HEIGHT GAGES, 0-2″, granite base

  Part #: 1157-501
  • Resolution .00005"/1um Accuracy (68℉）118uin Buttons: on/off, zero, mm/inch, mix/min/mix-min High response speed (200"/s) High brightness LED display
  $3,690.32
  Add to cart INSIZE
•

  DIGITAL HEIGHT GAGES WITH DRIVING WHEEL, 0-24″/0-600mm

  Part #: 1156-600
  • Resolution: .0005"/0.01mm.
  • Buttons: on/off, zero, inch/mm, preset +, preset -, hold.
  • Automatic power off, move the digital unit to turn on power.
  • Carbide tipped scriber.
  • Made of stainless steel.
  • Battery CR2032. Data output.
  • Supplied with dust cover. With dial test indicator holder Optional accessory: data output cable clamp for protractors (part no. 2372-CLAMP).
  $1,322.85
  Add to cart INSIZE
•

  DIGITAL HEIGHT GAGES WITH DRIVING WHEEL, 0-40″/0-1000mm

  Part #: 1156-1000
  • Resolution: .0005"/0.01mm.
  • Buttons: on/off, zero, inch/mm, preset +, preset -, hold.
  • Automatic power off, move the digital unit to turn on power.
  • Carbide tipped scriber.
  • Made of stainless steel.
  • Battery CR2032. Data output.
  • Supplied with dust cover. With dial test indicator holder Optional accessory: data output cable clamp for protractors (part no. 2372-CLAMP).
  $5,058.39
  Add to cart INSIZE
•

  DIGITAL HEIGHT GAGE, 0-6″/0-150mm, built-in wireless

  Part #: 1154-150WL
  • Resolution: .0005"/0.01mm.
  • Buttons: on/off, zero, inch/mm.
  • Automatic power off, move the digital unit to turn on power.
  • Carbide tipped scriber.
  • With fine adjustment.
  • Made of stainless steel.
  • Battery CR2032, data output.
  • Optional accessory: dial test indicator holder.
  $423.33
  Add to cart INSIZE
